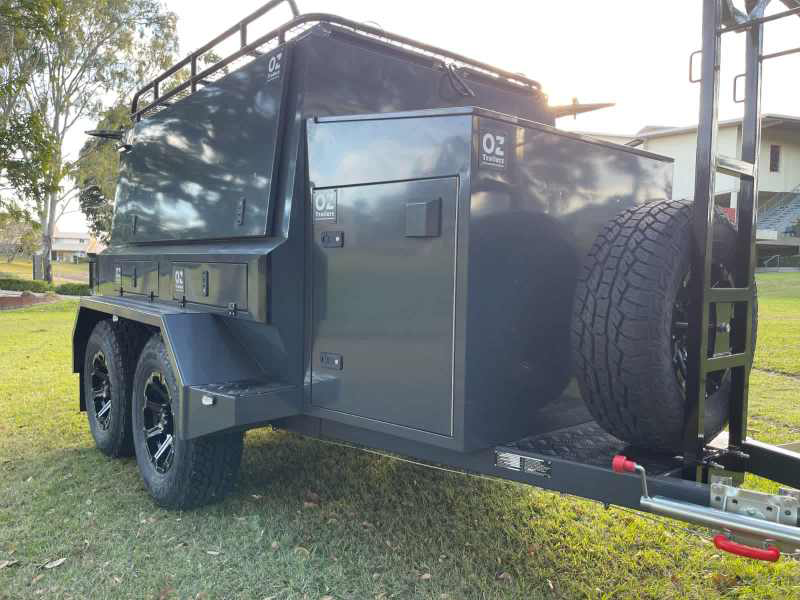

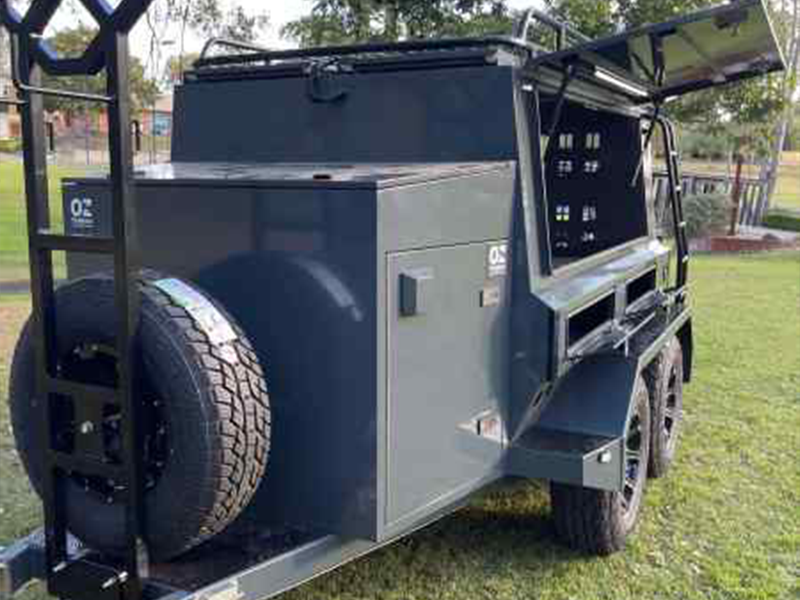

Tradesman Trailer Double Axle – Matte Black
Home / Trailers Range/ Tradesman Trailer Double Axle – Matte Black
2025 Oz Trailers Tradesman Tradie Tandem Double Axle Trailer Work XL – Matte Black
$21,510 ex GST
2025 Brand New Oz Trailers Tradesman Tradie Tandem Double Axle Trailer Work XL Full Package with 200w Solar + 2000w Inverter + 200ah Batteries + 2 x 75L + Central Locking and Alarm System just like your Car
Built with a strong galvanized steel frame, this tradesman trailer is made to handle the toughest conditions. Its high-quality build means it will last a long time, making it a reliable choice for all your hauling needs.
Available in Matte Black or Glossy Grey
Specifications
- Aggregate Trailer Mass (ATM): 3500KG
- Tare Mass: 1690KG
- Payload Capacity : 1810KG
- External Specifications
- Body Colour: Gloss Grey or Matt Black
- Tow Ball Diameter: Φ50mm
- Safety Chain: 2 x 12mm – AKR 4177.4 – 1994 Compliant
- Tyres: All Terrain 265/75R16
- Rims: Alloy XD Series 16″
- Suspension: 8-leaf Rocker Roller Suspension
- Axle: High-strength 50mm Solid Axle (Rated 3.5T)
- Tradesman Rack Dimensions: 2400mm L x 1400mm W
- Extended Tradesman Rack Dimensions: 3620mm L x 1000mm W
- Electrical Management Systems (EMS)
- Solar Panels: 2 x 100W, 18V, 10A Monocrystalline Cells
- Solar Controller: 20A PWM 12V/24V Solar Controller
- Batteries: 2 x 100AH Sealed Lead Acid Batteries
- Battery Charger: 30A ACDC Smart 9-Stage Charger
- Inverter: 2000W Pure Sine Wave w/ Added In-Rush Current Protection

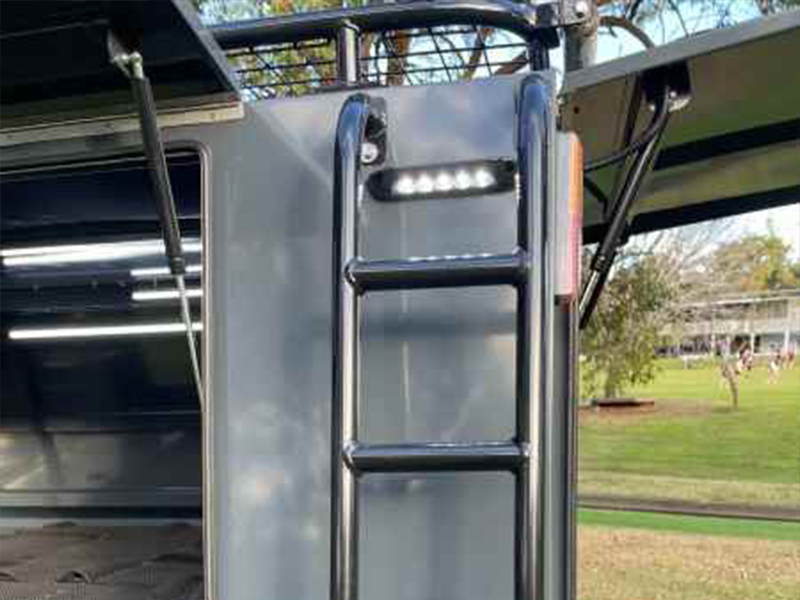

- Interior Lighting: 12V Strip lighting
- 12V Input: 2 x 50A Anderson Plugs
- 240V Input: 1 x 15A Clipsal Inlet Socket – 435VFS15
- 240V Output: 3 x 10A GPO’s
- Circuit Protection: Built-in Current Leakage Protection (RCD’s)
- Audio: 2 x JSD-530 Headunit w/ Bluetooth, Radio and MP3 Compatability
- Water Management Systems
- Tank Capacity: 2 x 75L Fresh Water Tank
- Water Pump: 12V EPDM Self Priming
- 2 x Anderson plugs, external sockets, power button
- Water gauge indicating levels found within the compartment

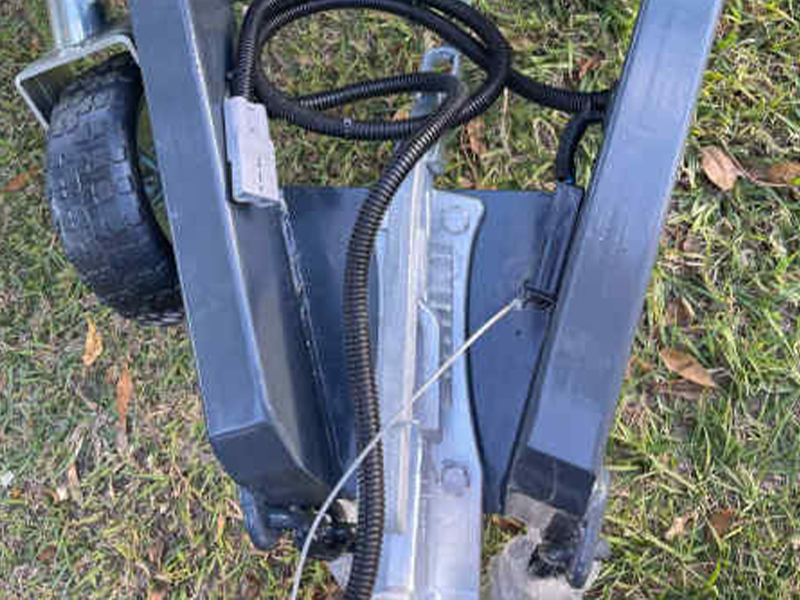

- Heavy duty Jockey leg located on the right-hand side

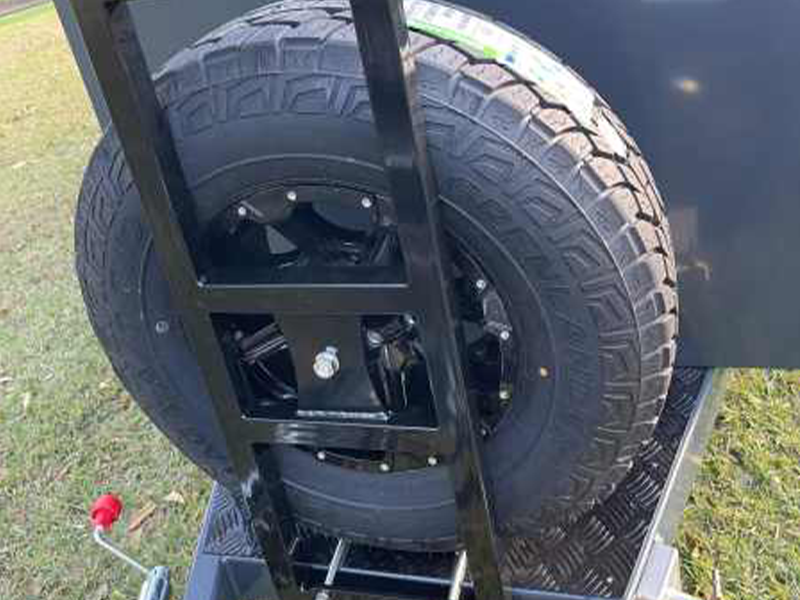

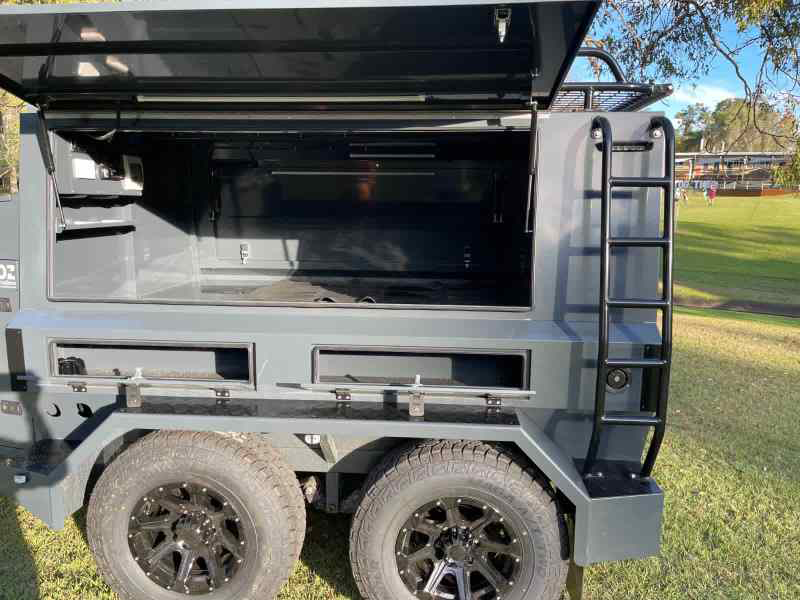

- Ladder rack located at the front with a spare tyre
- Fridge Slide with Fan

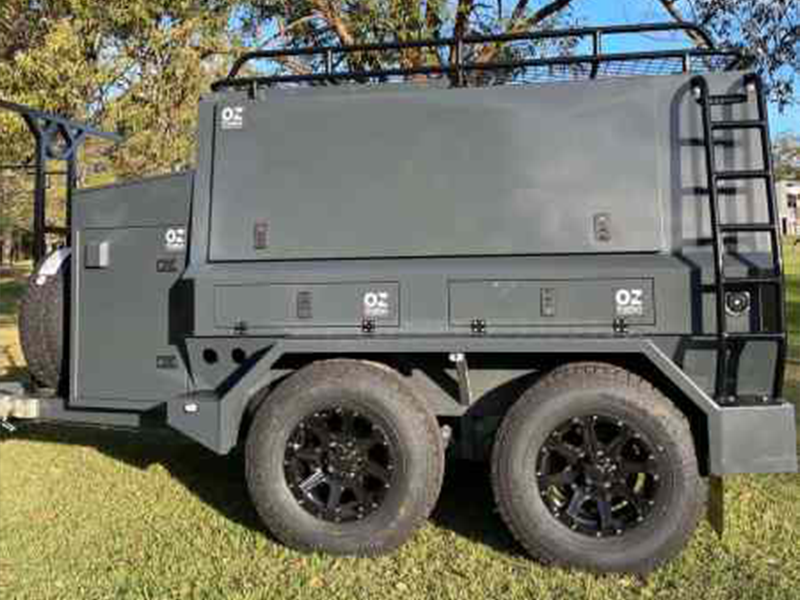

- Dual axel to assist in carrying more weight and stability
- Roof Luggage Carrier powder coated Black Included
- Brake, parker, reverse and number plate lights with a black checker plate finish.
Dimensions
- Body Dimensions: 2400mm L x 1500mm W x 1400mm H (Excluding Roof Rack)
- Trailer Dimensions: 4550mm L x 2200mm W x 2175mm H
- External Dimensions
- Tradesman Rack Dimensions: 2400mm L x 1400mm W
- Extended Tradesman Rack Dimensions: 3620mm L x 1000mm W
- Internal Dimensions
- Large Internal Opening (Near EMS): 2040mm L x 880mm W x 840mm H
- Smaller Internal Opening (Above Drawers): 2 x 1000mm L x 800mm W x 580mm H
- Internal Large Drawer: 760mm L x 760mm W x 200mm H
- Internal Small Drawer: 2 x 760mm L x 760mm W x 100mm H

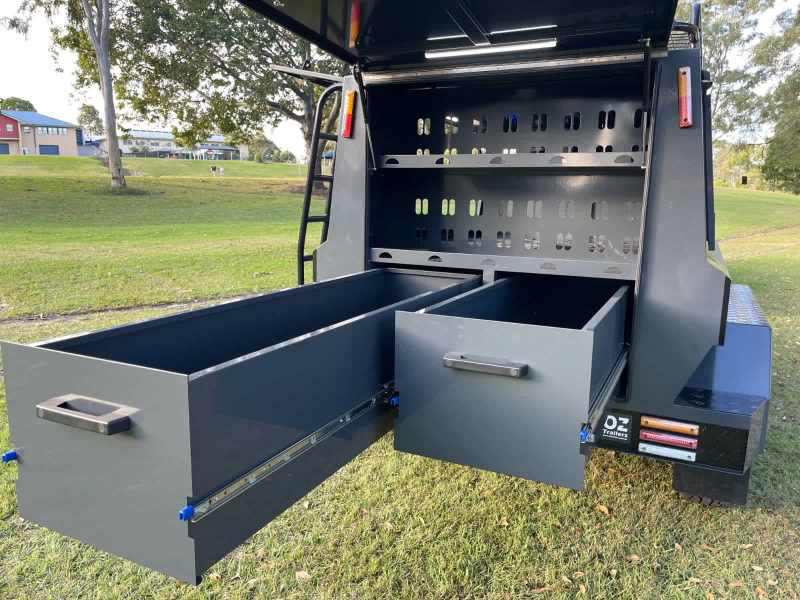

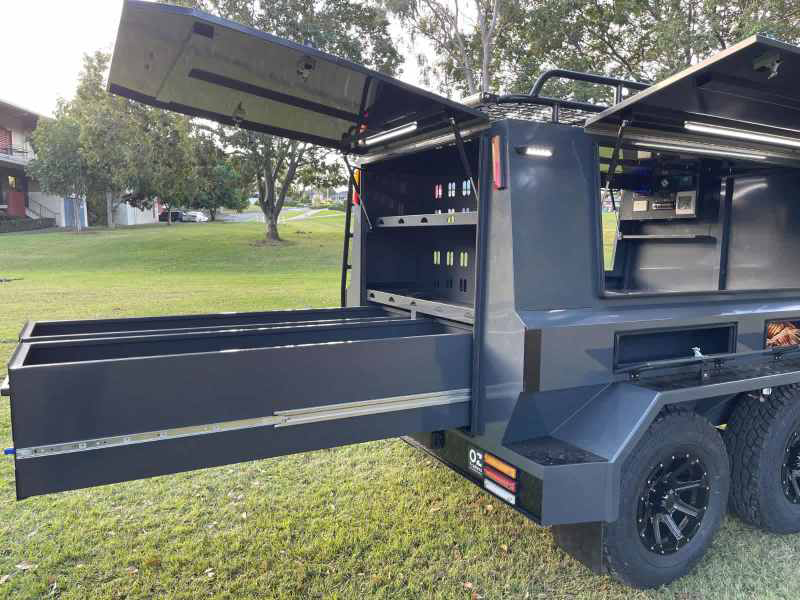

- Rear Trundle Drawers: 2 x 1720mm L x 460mm W x 350mm H
- Fridge Slide: 760mm L x 430mm W x 70mm H
Engineered for Strength and Longevity
4mm Galvanized Steel 100mm x 50mm RHS Frame: Engineered to be durable, tough, and with a manufactured structure that is built to last, these trailer tradesman units are constructed from premium galvanized steel and protected with a thick layer of industrial-grade powder coating to ensure their longevity.

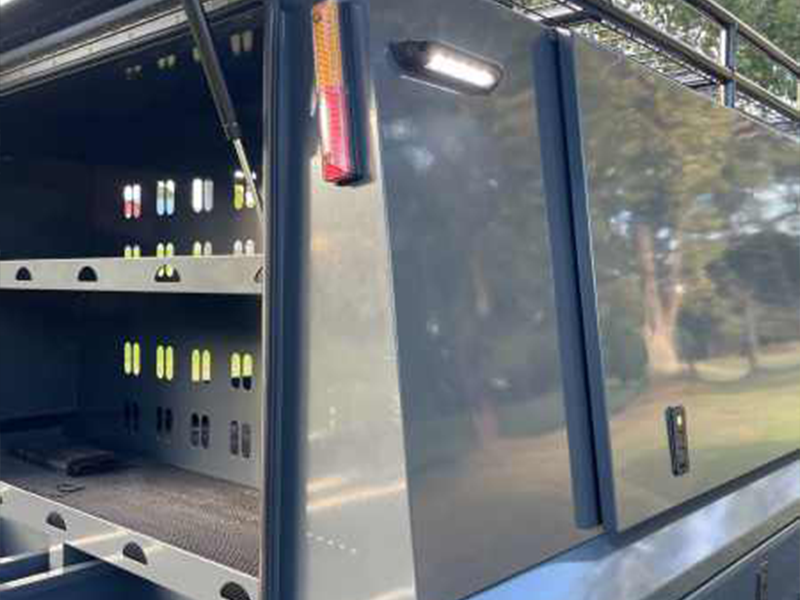

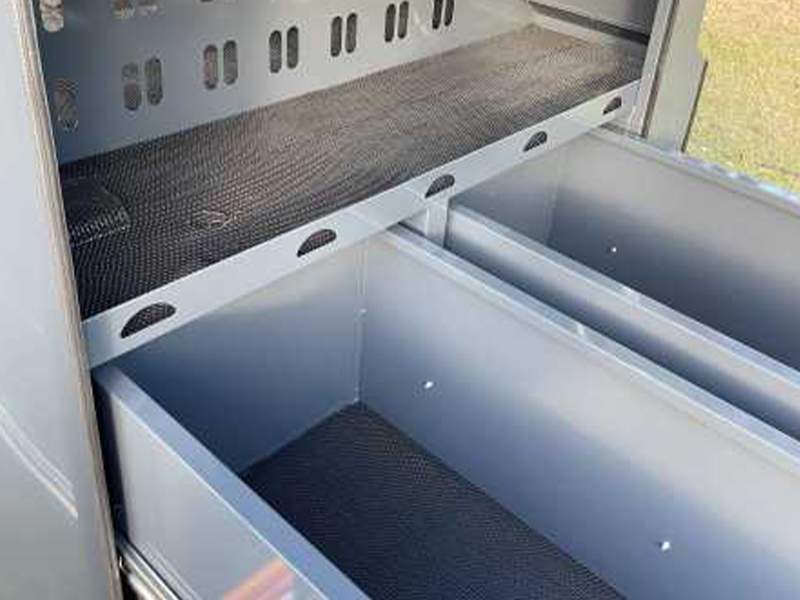

Ultimate Organisation with Internal Drawers
6 x Massive Internal Drawers for Any Application: Ready to be organized, packed, and onto the next job site at the drop of a pin! All 6 drawers and 11 large compartments contain storage space for all your smaller nuts and bolts, power tools, and larger pieces of equipment.

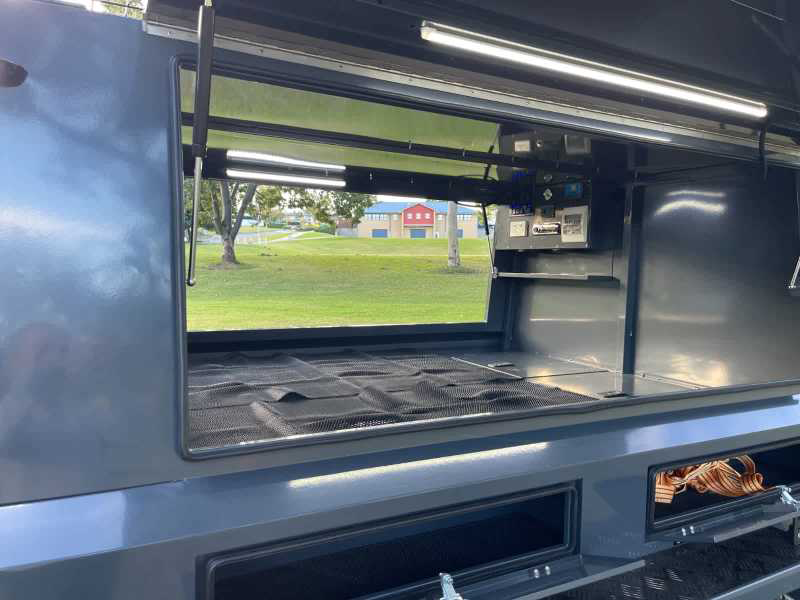

Advanced Electrical Management System
Intelligent Electrical Management System (EMS): Designed to keep your site powered for days at a time. Our innovative EMS features everything you need to charge and operate all your equipment when you need it. It includes 2 x 100Ah batteries, high-output solar panels and controllers, smart 2000W pure sine wave inverters, 240V external mains, and more!
Rugged Running Gear for Australian Terrain
Running gear to handle the Australian conditions: Maintaining a balanced ride with a large volume of weight over rough terrain is no easy task. That’s why we’ve installed our 8-Leaf Rocker Roller Suspension Kits on a 50mm solid axle, which is rated at 3.5 tons. Engineered to provide you with optimum performance irrespective of the conditions.
